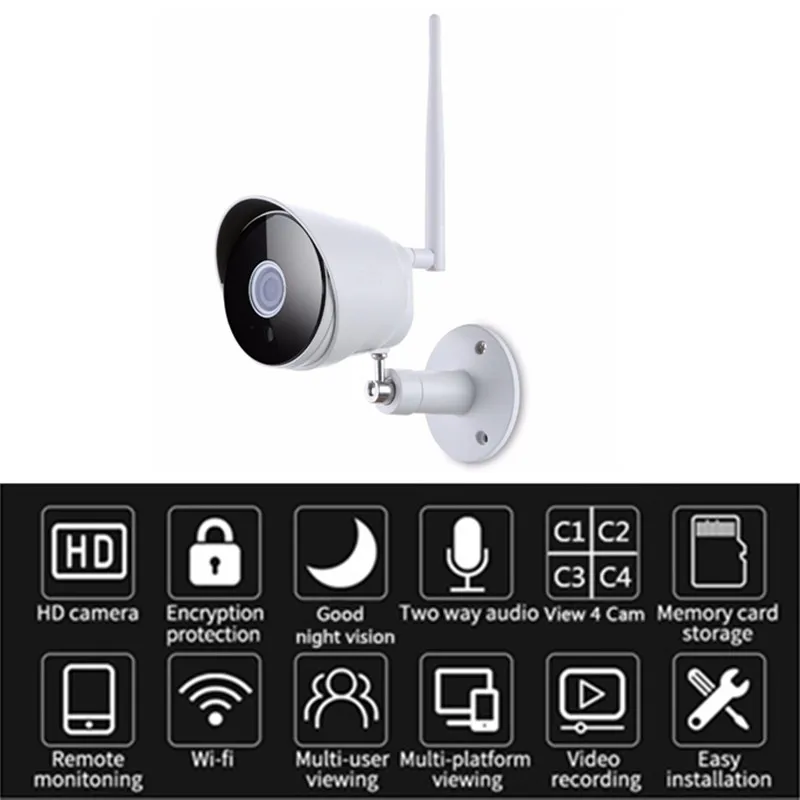

Model
|
QJ02
|
|
Chipset Infos
|
Chipset
|
INGENIC T21
|
|
CPU
|
Single Core 1.0GHz
|
|
RAM
|
16KB L1 I-Cache And 16KB L1 D-Cache.
64KB L2 Unified Cache. Capacity Of 512Mbit
|
|
Video
|
Sensor Type
|
1/2.9 Inch CMOS Sensor(F23)
|
|
Pixel
|
1920*1080(2.0mp)1080P
|
|
Min. LUX
|
0.1Lux
|
|
Video Coding
|
H.264, MJPEG
|
|
Pixel
|
HD(Main Stream): 1920*1080P SD(Sub Stream): 1024*576P
|
|
Frame Rate
|
Standard: 15fps In Day, 10fps At Night, Up To 25fps
|
|
Code Stream
|
Double Stream
|
|
Coding
|
Support CBR/VBR
|
|
Lens
|
Lens Type
|
Full Glass Lens
|
|
Lens
|
Focus: 3.6mm, Aparture: 2.4
|
|
View Angel
|
60°
|
|
Night Vision
|
Infrared Light
|
6PCs Infrared Light, Wavelength 850nm, Range: 15m
|
|
IR-CUT
|
IR-CUT Double Filter
|
|
Photosensitive
|
Sensitivity 0.7Ω/Lux
|
|
Audio
|
Audio Coding
|
ADPCM
|
|
2 Way Audio
|
Support
|
|
Built-In Mic
|
Support
|
|
Extend-Mic
|
No
|
|
Built-In Speaker
|
Support(8Ω1W)
|
|
Extend Speaker
|
No
|
|
Connection
|
Network Protocol
|
P2P, ONVIF2.4, TCP/IP, HTTP,TCP, UDP, SMTP, DHCP, NTP, RTSP, RTMP, MQTT
|
|
Wired Connection
|
RJ45 Port
|
|
Wireless Network
|
WIFI（IEEE 802.11b/g/n）
|
|
Wireless Connection
|
WIFI Connection
|
|
Connection
|
QR CODE To Connect, Sound Wave Code, AP Hot Spot And Wire Network
|
|
AP Hot Spot Connection
|
No(Optional)
|
|
P2P Connection
|
Support
|
|
Alarm
|
Motion Detection
|
Support, High Sensitivity/Medium/Low Three Adjustable
|
|
Sound Detection
|
Support, High Sensitivity/Medium/Low Three Adjustable
|
|
Alarm Mail Push
|
Support G-Mail, Yahoo, Sina, Sohu, 163, QQ Mail Alarm, Support FTP Upload Alarm Image, Turn On/Off The Function
|
|
Alarm Message Push
|
Support
|
|
Storage
|
Storage
|
Support 64G TF Card
|
|
Cloud Storage
|
No(Optional)
|
|
System Security
|
User Management
|
Administrators And Visitors
|
|
ID Anti-Theft
|
Support Adding License To ID, Illegal Piracy ID Is Invalid
|
|
Weight And Size
|
Product Size(mm)
|
69(L) x 69(W) x 183(H)
|
|
Color Box Size(mm)
|
220 x 105 x 130mm
|
|
Net Weight(g)
|
375g
|
|
Full Package Weight(g)
|
620g
|
|
Box(PCS)
|
20PCs
|
|
Weight(Kg)
|
12.5Kg
|
|
Dimension(mm)
|
550x450x270mm
|
|
Physical
|
Waterproof
|
IP66
|
|
Power Supplier
|
DC12V/1A
|
|
Working Humidity
|
20%~85%(Non-Condensing)
|
|
Working Temperature
|
–10°C~60°C
|
|
Storage Humidity
|
0%~90%(Non-Condensing)
|
|

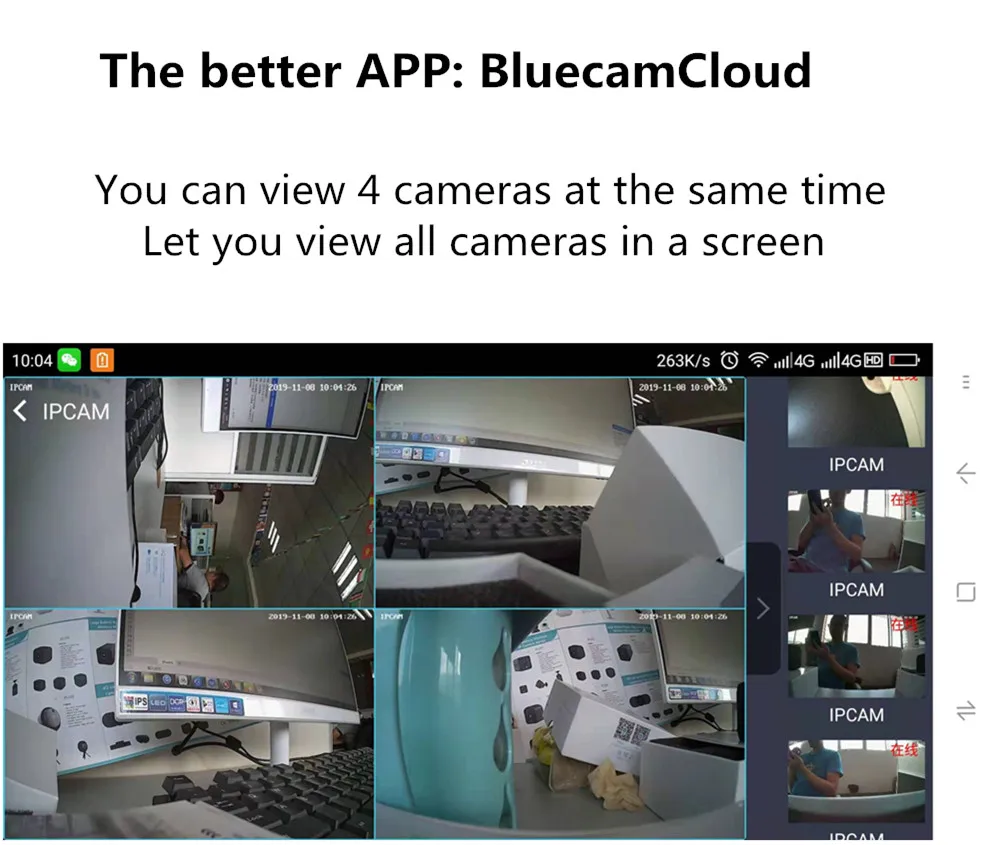

APP
|
Support Mobile Phone
|
IPhone And Android Smart Phone
|
|
APP Language
|
Chinese, Italian, German, French, Dutch, Portuguese, Japanese, Spanish, Russian, English, Vietnamese
|
|
Website
|
www.bluecam.cloud
|
|
Certification
|
CE, FCC, RHOS
|
|
Pack List
|
Color Box
|
|
Neto
|
|
Power Supplier
|
|
Screw
|
|
RJ45 Cable
|
|
User Manual
|
